產品名稱 : T52/T26
型號 : T52/T26
 |
 |
|
|
| BEAD CORES ( AXIAL TAPPING TYPE ) |
|
|
APPLICATIONS
The taping ferrite bead cores are produced for the automatic insertion into the PC boards
|
|
ORDERING CODE.
(1) MATERIAL CODE
(2) PRODUCT CODE
(3) SIZE CODE
(4) TAPING:(Lead Length T52 or T26

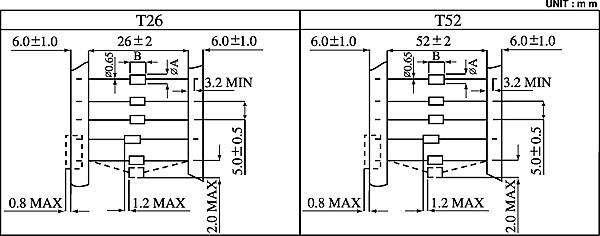

SHAPE
|
|
|
|
|
|
DIMENSIONS & CHARACTERISTICS UNIT:mm
|
|
NO
|
ORDERING CODE
|
A
|
B
|
IDC(A)
△T40℃ |
|
1
|
RH 2.5*3*0.8-T52 |
2.50±0.15 |
3.00±0.20 |
6 |
|
2
|
RH 2.5*4*0.8-T52 |
2.50±0.15 |
4.00±0.30 |
6 |
|
3
|
RH 2.5*7*0.8-T52 |
2.50±0.15 |
7.00±0.30 |
6 |
|
4
|
T 3.5*3*0.8-T52 |
3.50±0.15 |
3.00±0.20 |
6 |
|
5
|
T 3.5*3.2*0.8-T52 |
3.50±0.15 |
3.20±0.20 |
6 |
|
6
|
RH 3.5*3.5*0.8-T52 |
3.50±0.15 |
3.50±0.20 |
6 |
|
7
|
RH 3.5*4.5*0.8-T26 |
3.50±0.15 |
4.50±0.30 |
6 |
|
8
|
RH 3.5*4.5*0.8-T52 |
3.50±0.15 |
4.50±0.30 |
6 |
|
9
|
RH 3.5*4.7*0.8-T26 |
3.50±0.15 |
4.70±0.30 |
6 |
|
10
|
RH 3.5*4.7*0.8-T52 |
3.50±0.15 |
4.70±0.30 |
6 |
|
11
|
RH 3.5*5*0.8-T26 |
3.50±0.15 |
5.00±0.30 |
6 |
|
12
|
RH 3.5*5*0.8-T52 |
3.50±0.15 |
5.00±0.30 |
6 |
|
13
|
RH 3.5*6*0.8-T26 |
3.50±0.15 |
6.00±0.30 |
6 |
|
14
|
RH 3.5*6*0.8-T52 |
3.50±0.15 |
6.00±0.30 |
6 |
|
15
|
RH 3.5*6.7*0.8-T52 |
3.50±0.15 |
6.70±0.30 |
6 |
|
16
|
RH 3.5*7.5*0.8-T52 |
3.50±0.15 |
7.50±0.30 |
6 |
|
17
|
RH 3.5*8*0.8-T26 |
3.50±0.15 |
8.00±0.30 |
6 |
|
18
|
RH 3.5*8*0.8-T52 |
3.50±0.15 |
8.00±0.30 |
6 |
|
19
|
RH 3.5*8.3*0.8-T52 |
3.50±0.15 |
8.30±0.30 |
6 |
|
20
|
RH 3.5*9*0.8-T26 |
3.50±0.15 |
9.00±0.30 |
6 |
|
21
|
RH 3.5*9*0.8-T52 |
3.50±0.15 |
9.00±0.30 |
6 |
|
22
|
RH 3.5*9.5*0.8-T52 |
3.50±0.15 |
9.50±0.40 |
6 |
|
23
|
RH 3.5*10*0.8-T52 |
3.50±0.15 |
10.00±0.40 |
6 |
|
24
|
RH 3.5*11.4*0.8-T52 |
3.50±0.15 |
11.40±0.40 |
6 |
|
25
|
RH 3.5*14*0.8-T52 |
3.50±0.15 |
14.00±0.40 |
6 |
|
1. Other sizes are available upon request.
2. All the data listed in this catalogue are for reference only, King Core reserves
the right to alter or revise the specifications without prior notification.
|
